Adafruit KB2040 Kee Boar

chip:rp2040

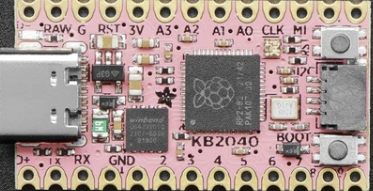

The KB2040 Kee Boar is a general purpose RP2040 board supplied by Adafruit.

See the Adafruit website for information about Adafruit KB2040.

Features

• RP2040 microcontroller chip
• Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
• 264kB of SRAM, and 8MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards
• USB Host and Device support via type C connector.
• Low-power sleep and dormant modes
• Drag & drop programming using mass storage over USB
• 18 multi-function GPIO pins
• 2× SPI, 2× I2C, 2× UART, 3× 12-bit ADC, 16× controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating point libraries on-chip
• 8 × Programmable IO (PIO) state machines for custom peripheral support
• On-board STEMMA QT connector for quick I2C connection.

Serial Console

By default a serial console appears on pins 1 (TX GPIO0) and pin 2 (RX GPIO1). This console runs a 115200-8N1.

The board can be configured to use the USB connection as the serial console.

Buttons and LEDs

There is a BOOT button which if held down when power is first applied or the RESET button is pressed will cause the RP2040 to boot into program mode and appear as a storage device to a USB connector. Saving a .UF2 file to this device will replace the Flash ROM contents on the RP2040.

A RESET button that allows rebooting the board without disconnecting the power.

A ws2812 (NeoPixel) smart RGB LED controlled by GPIO17.

Pin Mapping

Pads numbered anticlockwise from USB connector.

Pad Signal Notes

---

1 D+ Alternate USB data connection. 2 GPIO0 Default TX for UART0 serial console 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 GPIO1 Ground Ground GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 GPIO19 GPIO20 GPIO18 Default RX for UART0 serial console 18 GPIO26 ADC0 19 GPIO27 ADC1 20 GPIO28 ADC2 21 22 GPIO29 Ground ADC3 23 Raw Connected to USB +5V line 24 D- Alternate USB data connection.

The board has a STEMMA QT connector that is also connected to pins GPI12 (I2C1 SDA) and GPI13 (I2C1 SDA).

Power Supply

The Raspberry Pi Pico can be powered via the USB connector, or by supplying +5V to pin 23.

The Raspberry Pi Pico chip run on 3.3 volts. This is supplied by an onboard voltage regulator.

Supported Capabilities

NuttX supports the following RP2040 capabilities:

• UART (console port)
  • GPIO 0 (UART0 TX) and GPIO 1 (UART0 RX) are used for the console.
• I2C
• SPI (master only)
• DMAC
• PWM
• ADC
• Watchdog
• USB device
  • MSC, CDC/ACM serial and these composite device are supported.
  • CDC/ACM serial device can be used for the console.
• PIO (RP2040 Programmable I/O)
• Flash ROM Boot
• SRAM Boot
  • If Pico SDK is available, nuttx.uf2 file which can be used in BOOTSEL mode will be created.
• Persistent flash filesystem in unused flash ROM
• WiFi wireless communication

There is currently no direct user mode access to these RP2040 hardware features:

• SPI Slave Mode
• SSI
• RTC
• Timers

NuttX also provide support for these external devices:

• BMP180 sensor at I2C0 (don't forget to define I2C0 GPIOs at "I2C0 GPIO pin assign" in Board Selection menu)
• INA219 sensor / module (don't forget to define I2C0 GPIOs at "I2C0 GPIO pin assign" in Board Selection menu)
• SHT4X sensor at I2C0
• Pico Display Pack (ST7789 LCD)
  • RGB leds and buttons are not supported yet.
• Pico Audio Pack (PCM5100A I2S DAC)
  • I2S interface is realized by PIO.
• WS2812 smart pixel support

Installation

1. Download Raspberry Pi Pico SDK.

 git clone -b 2.0.0 https://github.com/raspberrypi/pico-sdk.git

2. Download and install picotool

Instructions can be found here: https://github.com/raspberrypi/picotool

If you are on Arch Linux, you can install the picotool through the AUR:

 yay -S picotool

3. Set PICO_SDK_PATH environment variable

 export PICO_SDK_PATH=<absolute_path_to_pico-sdk_directory>

4. Configure and build NuttX

 git clone https://github.com/apache/nuttx.git nuttx
 git clone https://github.com/apache/nuttx-apps.git apps
 cd nuttx
 make distclean
 ./tools/configure.sh adafruit-kb2040:nsh
 make V=1

5. Connect the Adafruit KB2040 board to USB port while pressing BOOT. The board will be detected as USB Mass Storage Device. Then copy "nuttx.uf2" into the device (Same manner as the standard Pico SDK applications installation).

6. To access the console, GPIO 0 (TX) and GPIO 1 (RX) pins must be connected to the device such as USB-serial converter.

   [usbnsh]{.title-ref} configuration provides the console access by USB CDC/ACM serial decive. The console is available by using a terminal software on the USB host.

Configurations

audiopack

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for NXPlayer audio player.

Pico Audio Pack support. See the following page for connection: https://shop.pimoroni.com/products/pico-audio-pack SD card interface is also enabled.

composite

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for CDC/ACM with MSC USB composite driver. conn command enables the composite device.

displaypack

NuttShell configuration (console enabled in USB Port, at 115200 bps) supporting ST7789 video display.

See the following page for connection: https://shop.pimoroni.com/products/pico-display-pack

enc28j60

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for ENC28J60.

ENC28J60 SPI ethernet controller supports:

• IP address is configured by DHCP.
• DNS address is 8.8.8.8 (CONFIG_NETINIT_DNSIPADDR)
• NTP client is enabled.

ENC28J60 Raspberry Pi Pico W

---

GND GND (Pin 3 or 38 or ...) 3.3V 3V3 OUT (Pin 36) SI GP15 (SPI1 TX) (Pin 20) SCK GP14 (SPI1 SCK) (Pin 19) CS GP13 (SPI1 CSn) (Pin 17) SO GP12 (SPI1 RX) (Pin 16) INT GP11 (Pin 15) RESET GP10 (Pin 14)

: ENC28J60 connections

lcd1602

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for LCD1602 Segment LCD Display (I2C).

PCF8574 BackPack Raspberry Pi Pico W

---

GND GND (Pin 3 or 38 or ...) VCC 5V Vbus (Pin 40) SDA GP4 (I2C0 SDA) (Pin 6) SCL GP5 (I2C0 SCL) (Pin 7)

: LCD1602 connections

nsh

Basic NuttShell configuration (console enabled in UART0, at 115200 bps).

nsh-flash

Basic NuttShell configuration (console enabled in UART0, at 115200 bps with SMART flash filesystem.

nshsram

NuttShell configuration (console enabled in UART0, at 115200 bps) with interrupt vectors in RAM.

smp

Basic NuttShell configuration (console enabled in UART0, at 115200 bps) with both ARM cores enabled.

spisd

NuttShell configuration (console enabled in UART0, at 115200 bps) with SPI SD card support enabled.

SD card slot Raspberry Pi Pico W

---

DAT2 Not connected DAT3/CS GP17 (SPI0 CSn) (Pin 22) CMD /DI GP19 (SPI0 TX) (Pin 25) VDD 3V3 OUT (Pin 36) CLK/SCK GP18 (SPI0 SCK) (Pin 24) VSS GND (Pin 3 or 38 or ...) DAT0/DO GP16 (SPI0 RX) (Pin 21) DAT1 Not connected

: spisd connections

Card hot swapping is not supported.

ssd1306

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for SSD1306 OLED display (I2C) test configuration.

SSD1306 Raspberry Pi Pico W

---

GND GND (Pin 3 or 38 or ...) VCC 3V3 OUT (Pin 36) SDA GP4 (I2C0 SDA) (Pin 6) SCL GP5 (I2C0 SCL) (Pin 7)

: SSD1306 connections

st7735

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for ST7735 SPI LCD.

st7735 Raspberry Pi Pico W

---

GND GND (Pin 3 or 38 or ...) VCC 5V Vbus (Pin 40) SDA GP15 (SPI1 TX) (Pin 20) SCK GP14 (SPI1 SCK) (Pin 19) CS GP13 (SPI1 CSn) (Pin 17) AO(D/C) GP12 (SPI1 RX) (Pin 16) BL GP11 (Pin 15) RESET GP10 (Pin 14)

: ST7735 connections

usbmsc

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for USB MSC and CDC/ACM.

msconn and sercon commands enable the MSC and CDC/ACM devices. The MSC support provides the interface to the SD card with SPI, so the SD card slot connection like spisd configuration is required.

usbnsh

Basic NuttShell configuration using CDC/ACM serial (console enabled in USB Port, at 115200 bps).

waveshare-lcd-1.14

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for st7789.

waveshare-lcd-1.3

NuttShell configuration (console enabled in UART0, at 115200 bps) with support for usbmsc.

License exceptions

The following files are originated from the files in Pico SDK. So, the files are licensed under 3-Clause BSD same as Pico SDK.

• arch/arm/src/rp2040/rp2040_clock.c
• arch/arm/src/rp2040/rp2040_pll.c
• arch/arm/src/rp2040/rp2040_xosc.c
  • These are created by referring the Pico SDK clock initialization.
• arch/arm/src/rp2040/rp2040_pio.c
• arch/arm/src/rp2040/rp2040_pio.h
• arch/arm/src/rp2040/rp2040_pio_instructions.h
  • These provide the similar APIs to Pico SDK's hardware_pio APIs.
• arch/arm/src/rp2040/hardware/*.h
  • These are generated from rp2040.svd originally provided in Pico SDK.
