Atmega MEGA1284P-XPLAINED

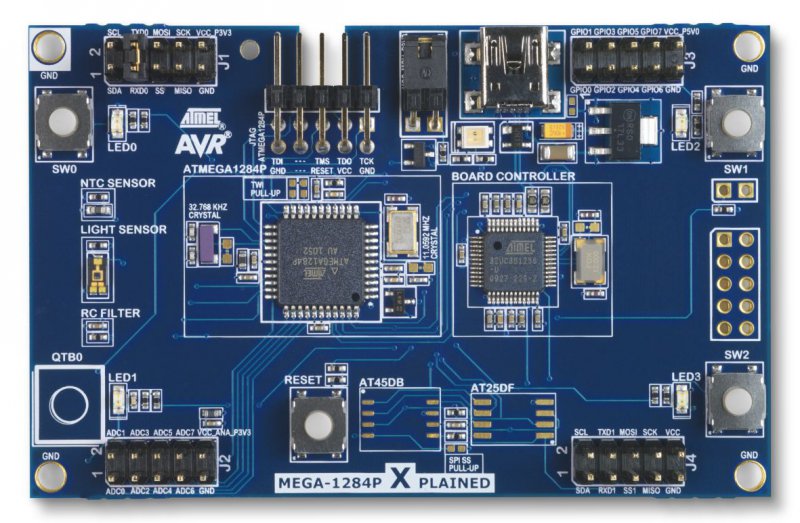

The MEGA1284P-XPLAINED is a development board for the Atmega1284P from Microchip/Atmel.

Features

• Atmega1284P MCU, 128K FLASH, 16K SRAM
• 11.0592 MHz crystal
• 32768 Hz crystal
• Embedded AVR911 compatible programmer
• Reset button
• 4 user buttons (3 switch and 1 touch button)
• 4 LEDs indicator (connected to PWM pins)
• Light sensor
• NTC sensor
• Not populated external SPI Flash with labels: AT45DB and AT25DF
• Power indicator LED

Pin Mapping

Pin Signal Notes

---

P0.24 Blue LED Active LOW P0.23 Red LED Active LOW P0.22 P0.20 P0.19 Green LED UART TX UART RX Active LOW

Configurations

nsh

Basic NuttShell configuration (console enabled in USART0, pins PD0 (RXD0) and PD1 (TXD0), at 115200 bps).

Flash & Debug

You can flash the board using avrdure. First press and hold SW0 button, then press and release RESET button, after 1 second release the SW0 button. Now run the command:

 avrdude -p atmega1284p -c avr910 -P /dev/ttyACM0 -b57600 -F -u -U flash:w:nuttx.hex:i
