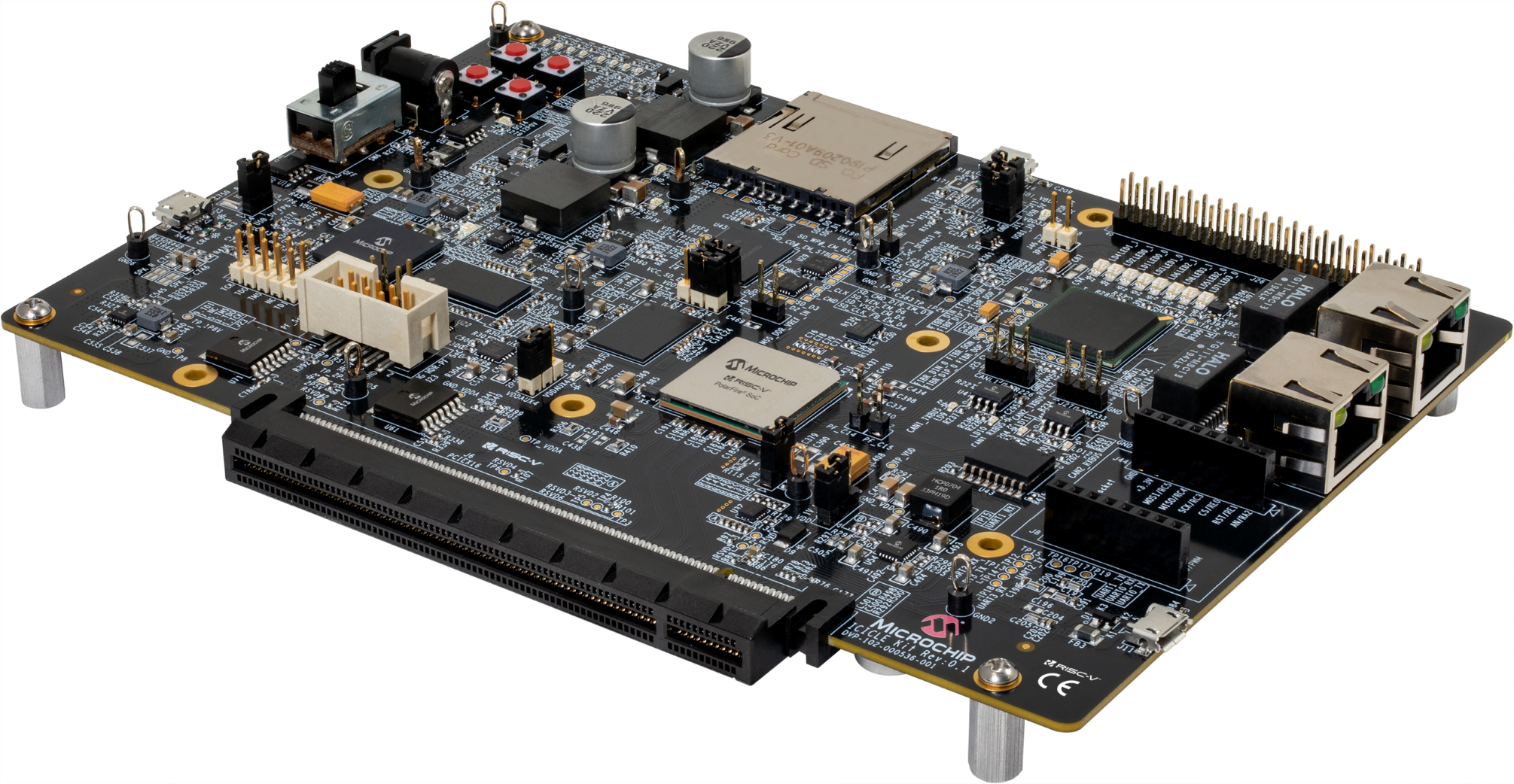

PolarFire SoC Icicle Kit
CPU
PolarFire SoC FPGA (MPFS250T-FCVG484EES)
- SiFive E51 Monitor core (1 x RV64IMAC)
- SiFive U54 Application cores (4 x RV64GC)
- and Secure boot
Memory and storage
- 2 GB LPDDR4 x 32
- 1 Gb SPI flash
- 8 GB eMMC flash & SD card slot (multiplexed)
Programming & Debugging
Onboard JTAG connector or onboard embedded FlashPro (multiplexed)
- UART via micro USB
- 52 x test points
Interfaces
- 4 x 12.7 Gbps SERDES
- PCIe Gen2 Rootport
- 2 x Gigabit Ethernet
- Micro USB 2.0 Hi-Speed OTG
- 4 x UART (via single micro USB)
- 2 x CAN
- 2 x SPI
- 2 x I²C
Expansion
- Raspberry Pi compatible 40-pin header
- mikroBUS socket
Sensor
- Power sensor (pac1934)
Buttons and LEDs
Buttons
There are 3 buttons and reset button. The Reset button is not available to software by default.
LEDs
There is 4 user controlled on-board LEDs.
Configurations
nsh
Basic configuration to run the NuttShell (nsh).
hwtest ---
Configuration to run the NuttShell (nsh) and enabling the peripherals.
The following peripherals are configured: - I2C0 & I2C1 - Ethernet on MAC 1, configured to 1Gbit speed - USB (high speed) + CDCACM - SDCard - SPI0 & SPI1 - UART0-4 - CorePWM (nb. needs the FPGA IP installed to work) - CoreSPI (nb. needs the FPGA IP installed to work)
The following applications are available: - TelnetD (at address 10.0.0.2) - tcpblaster & udpblaster - ostest
