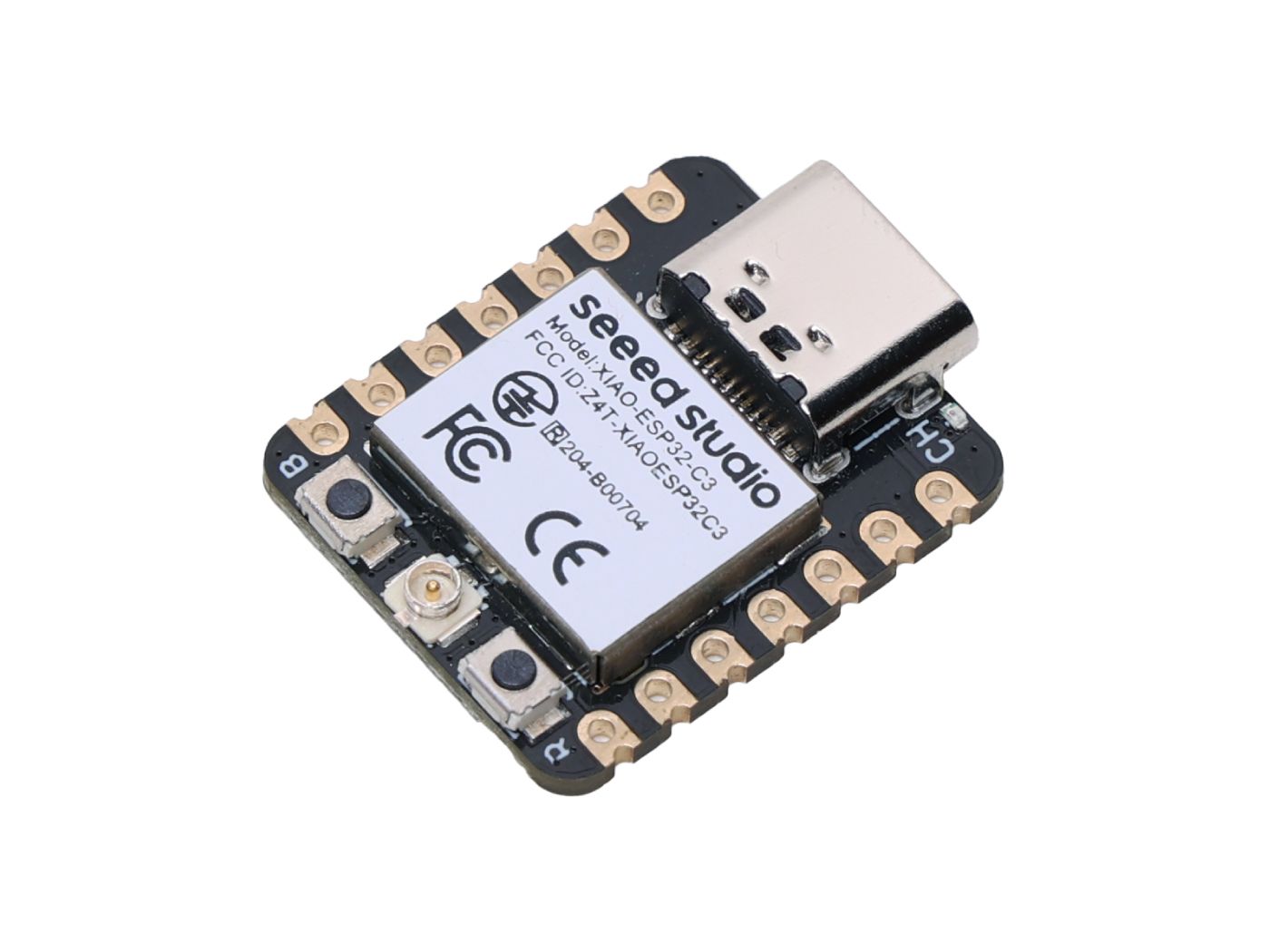

Seeed Studio XIAO ESP32C3
The Seeed Studio XIAO ESP32C3 is a general purpose board supplied by Seeed Studio and it is compatible with the Espressif ESP32C3 ecosystem, sharing the same MCU as ESP32-C3-DevKitC.
Features
- 32bit RISC-V single core processor that operates at up to 160 MHz
- 400KB of SRAM, and 4MB of on-board flash memory
- USB Type-C interface
- Wireless: Complete 2.4GHz Wi-Fi subsystem;
- BLE: Bluetooth 5.0, Bluetooth mesh
- 1x UART, 1x I2C, 1x SPI,11x GPIO(PWM), 4x ADC
- 1 RESET button, 1 BOOT button
NSH Console
The NuttShell (NSH) console is available over USB using the CDC/ACM serial interface. To access the console, connect via a terminal emulator at 115200 baud, 8 data bits, no parity, and 1 stop bit (115200-8N1).
Buttons
The RESET and BOOT buttons can be used to enter "Bootloader" mode by press and hold the BOOT key while powering up and then press the RESET key once.
Pin Mapping
Pads numbered anticlockwise from USB connector.
Pad Signal Notes
0 GPIO02 D0/A0 1 GPIO03 D1/A1 2 GPIO04 D2/A2 3 GPIO05 D3/A3 4 GPIO06 D4/SDA 5 GPIO07 D5/SCL 6 GPIO21 D6/Default TX for UART0 serial console 7 GPIO20 D7/Default RX for UART0 serial console 8 GPIO08 D8/SCK 9 GPIO09 D9/MISO 10 GPIO10 D10/MOSI 11 12 3V3 Ground Power output to peripherals 13 VIN +5V Supply to board
Power Supply
The working voltage of the MCU is 3.3V. Voltage input connected to general I/O pins may cause chip damage if it's higher than 3.3V.
Installation
- Configure and build NuttX:
git clone https://github.com/apache/nuttx.git nuttx
git clone https://github.com/apache/nuttx-apps.git apps
cd nuttx
make distclean
./tools/configure.sh xiao-esp32c3:usbnsh
make V=12. Connect the Seeed Studio XIAO ESP32C3, and enter "Bootloader" mode, then, flash the nuttx.hex file using esptool: (https://docs.espressif.com/projects/esptool/en/latest/esp32/)
Example command:
make flash ESPTOOL_PORT=/dev/ttyACM0 ESPTOOL_BINDIR=./Configurations
nsh
Basic NuttShell configuration using serial (console enabled in UART0, exposed via pins D6/TX and D7/RX, at 115200 bps).
usbnsh
Basic NuttShell configuration using CDC/ACM serial (console enabled in USB Port, at 115200 bps).
NuttShell (NSH) NuttX-12.8.0
nsh> uname -a
NuttX 12.8.0 2c845426da-dirty Apr 6 2025 22:53:57 xtensa esp32c3-xiaogpio
This configuration enabled NuttShell via USB and enabled gpio example.
Testing gpios:
PIN/GPIO Mode Device
D0/GPIO2 Output /dev/gpio0 D1/GPIO3 Input /dev/gpio1
nsh> gpio -o 1 /dev/gpio0
Driver: /dev/gpio0
Output pin: Value=1
Writing: Value=1
Verify: Value=1
nsh>
nsh> gpio -o 0 /dev/gpio0
Driver: /dev/gpio0
Output pin: Value=1
Writing: Value=0
Verify: Value=0
nsh> gpio -w 1 /dev/gpio1
Driver: /dev/gpio1
Interrupt pin: Value=0
Verify: Value=1wifi
This configuration enables a wlan network interface that can be configured and initialized using below commands:
nsh> ifup wlan0
nsh> wapi psk wlan0 mypasswd 3
nsh> wapi essid wlan0 myssid 1
nsh> renew wlan0
In this case a connection to AP with SSID myssid is done, using mypasswd as password. IP address is obtained via DHCP using renew command. You can check the result by running ifconfig afterwards.
NuttShell (NSH) NuttX-12.8.0
nsh> uname -a
NuttX 12.9.0 6b4bc72626-dirty Apr 26 2025 17:40:37 risc-v esp32c3-xiao
nsh> ?
help usage: help [-v] [<cmd>]
. cp expr pkill pwd uname
[ cmp false ls rm umount
? dirname fdinfo mkdir rmdir unset
alias date free mkrd set uptime
unalias df help mount sleep usleep
arp dmesg hexdump mv source watch
basename echo ifconfig nslookup test xd
break env ifdown pidof time wait
cat exec ifup printf true
cd exit kill ps truncate
Builtin Apps:
dd getprime ostest rand sh
dumpstack nsh ping renew wapi
nsh> wapi psk wlan0 nuttxpwd 3
nsh> wapi essid wlan0 nuttxnw 1
nsh> renew wlan0
nsh> ifconfig
wlan0 Link encap:Ethernet HWaddr a0:85:e3:0e:4a:30 at RUNNING mtu 576
inet addr:192.168.59.144 DRaddr:192.168.59.134 Mask:255.255.255.0
nsh> ping 8.8.8.8
PING 8.8.8.8 56 bytes of data
56 bytes from 8.8.8.8: icmp_seq=0 time=50.0 ms
56 bytes from 8.8.8.8: icmp_seq=1 time=40.0 ms
56 bytes from 8.8.8.8: icmp_seq=2 time=30.0 ms
56 bytes from 8.8.8.8: icmp_seq=3 time=60.0 ms
56 bytes from 8.8.8.8: icmp_seq=4 time=100.0 ms
56 bytes from 8.8.8.8: icmp_seq=5 time=100.0 ms
56 bytes from 8.8.8.8: icmp_seq=6 time=140.0 ms
56 bytes from 8.8.8.8: icmp_seq=7 time=40.0 ms
56 bytes from 8.8.8.8: icmp_seq=8 time=50.0 ms
56 bytes from 8.8.8.8: icmp_seq=9 time=30.0 ms
10 packets transmitted, 10 received, 0% packet loss, time 10100 ms
rtt min/avg/max/mdev = 30.000/64.000/140.000/34.985 ms
nsh> nslookup google.com
Host: google.com Addr: 142.251.128.238
nsh> nslookup nuttx.apache.org
Host: nuttx.apache.org Addr: 151.101.2.132
nsh>ble
This configuration is used to enable the Bluetooth Low Energy (BLE) of ESP32-C3 chip.
NuttShell (NSH) NuttX-12.8.0
nsh> bt bnep0 scan start
nsh> bt bnep0 scan stop
nsh> bt bnep0 scan get
Scan result:
1. addr: a0:46:5a:22:ea:c4 type: 0
rssi: -92
response type: 0
advertiser data: 02 01 02 19 16 f1 fc 04 f9 6e e8 58 e6 33 58 26 c5 4b bd 91 1c e0 4f b2 d9 51 455
2. addr: a0:46:5a:22:ea:c4 type: 0
rssi: -91
response type: 0
advertiser data: 02 01 02 19 16 f1 fc 04 f9 6e e8 58 e6 33 58 26 c5 4b bd 91 1c e0 4f b2 d9 51 455
3. addr: a0:46:5a:22:ea:c4 type: 0
rssi: -100
response type: 0
advertiser data: 02 01 02 19 16 f1 fc 04 f9 6e e8 58 e6 33 58 26 c5 4b bd 91 1c e0 4f b2 d9 51 455
4. addr: a0:46:5a:22:ea:c4 type: 0
rssi: -100
response type: 4
advertiser data:
5. addr: a0:46:5a:22:ea:c4 type: 0
rssi: -97
response type: 0
advertiser data: 02 01 02 19 16 f1 fc 04 f9 6e e8 58 e6 33 58 26
