avr32dev1

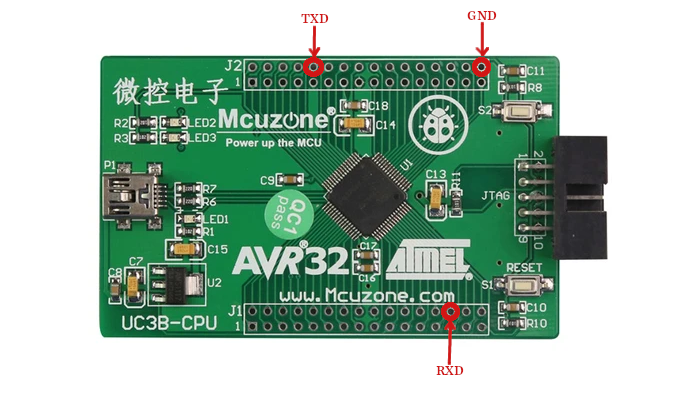

This is a port of NuttX to the Atmel AVR32DEV1 board and compatible with MCUZone UC3B-CPU board depicted here:

This board is based on the Atmel AT32UC3B0256 MCU and uses a specially patched version of the GNU toolchain: The patches provide support for the AVR32 family. That patched GNU toolchain is available only from the Atmel website.

STATUS: This port is functional but very basic. There are configurations for NSH and the OS test.

Features

• AVR32 AT32UC3B0256 microcontroller
• mini-USB Connector
• Power LED (LED1)
• MCU controllable LEDs: LED2 and LED3
• S1/RESET and S2 buttons (S2 accessible to user)
• 12MHz (main clock) and 32KHz for RTC

Serial Console

The board uses by default the USART1 as serial console. The pins PB2 (TXD) and PA24 (RXD) are used for USART1.

This way you need to connect a USB/Serial adapter to get access to the NuttShell. Connect the TXD from your USB/Serial to the RXD of the board, and the RXD from USB/Serial to the TXD of the board.

There is another detail about the baudrate, you need to use 57600 8n1.
